Manufacturing Route
5-axis machining with drawing-driven process planning and controlled fixture strategy.
CNC Ultra-Precision Machining

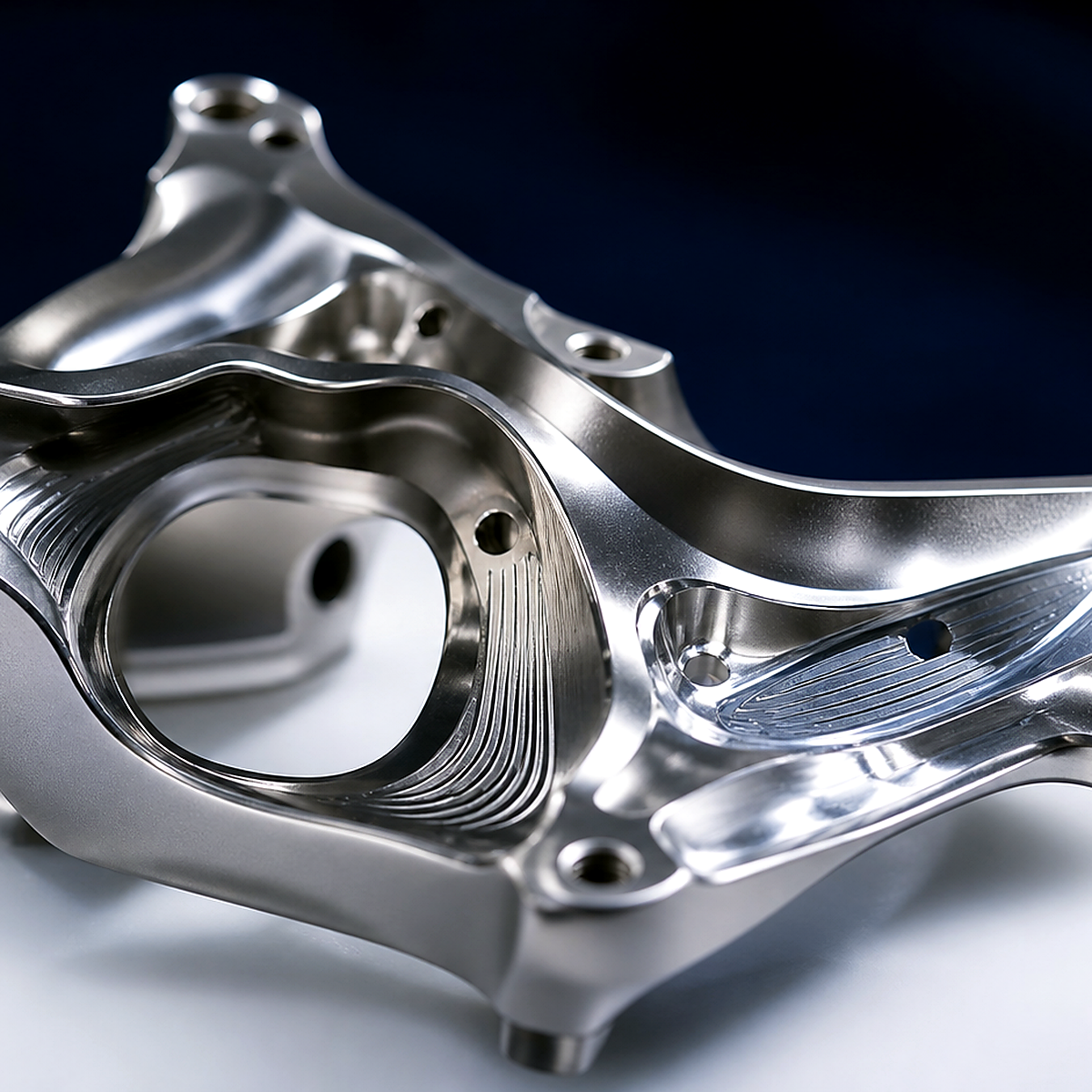

5-Axis Complex Surface Parts
Five-axis machined complex surface components for demanding geometry, stability and micron-level machining requirements.
Quote
On Request
Drawing-based engineering review · response within 24–48 hours
Quantity
Technical Specification
Manufacturing profile for quotation and DFM review.
- Equipment

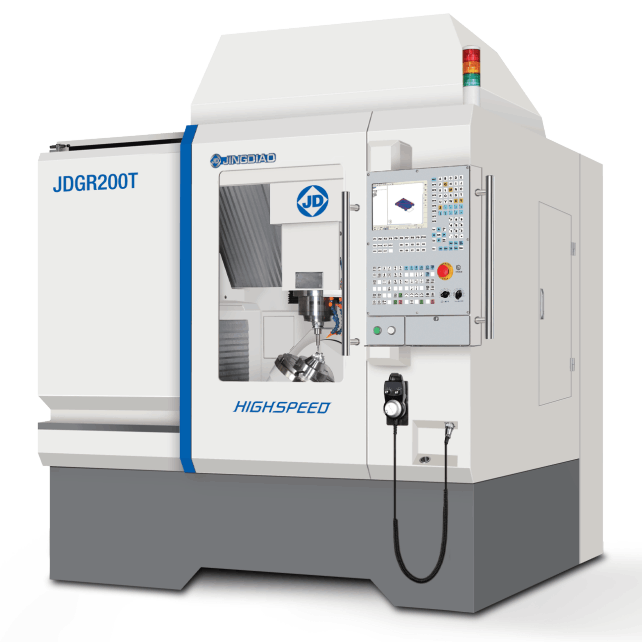

- Beijing Jingdiao JDGR200T, Mazak VCE570 BL
- Process
- 5-axis CNC, 3+2 machining and optimized toolpath programming
- Machining Focus
- Freeform surfaces, curved cavities, difficult angles and stable micron-level machining
- Supply
- Drawing-based custom machining
- Lead Time
- Prototype 10-20 days; batch 20-30 days
Manufacturing Strength
Controlled CNC execution for demanding geometry and surface requirements.
The process route is selected around the part geometry, material behavior, inspection method and delivery volume.
Dimensional Control
Freeform surfaces supported by inspection checkpoints and tolerance-stack review.
Surface & Edge Quality
Stable datum with burr, edge condition and finish requirements checked before delivery.
Quality System
ISO13485 / ISO9001 driven documentation, inspection and production feedback.
Where It Fits
- Complex medical surfaces
- Precision mechanical structures
- Robotics and aerospace-grade component programs
Control Points
- 3D contour verification
- CMM dimensional checks
- Toolpath and fixture review
- Batch stability monitoring
Execution Workflow
A practical route from drawings to inspected delivery.
Each step is adjusted to part risk, tolerance sensitivity, surface requirements and batch size.
Drawing Review
Evaluate CAD, material, tolerance, surface finish and annual volume before quotation.
Process Route
Define machining sequence, fixture strategy, deformation control and inspection plan.
Prototype Build
Run prototype or pilot production with dimensional and surface checkpoints.
Inspection & Delivery
Provide inspection support, packaging review and batch production feedback.
Product & Capability Images
Send Drawings
Visual references for geometry, machining and inspection context.
Send drawings for review
Request Quote arrow_forward
