Manufacturing Route
23 mm diameter with drawing-driven process planning and controlled fixture strategy.
Swiss-Type Precision Machining

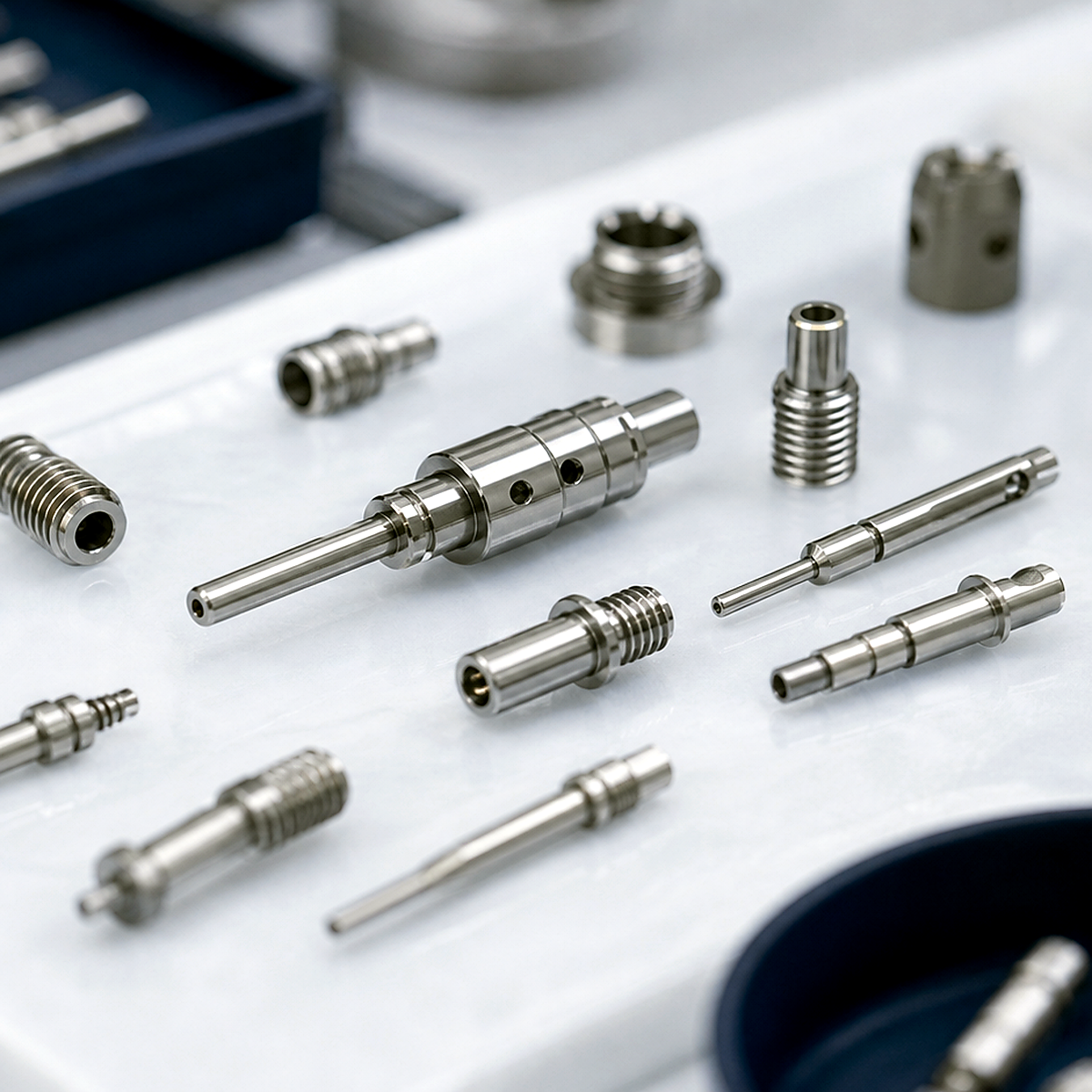

Swiss-Type Shafts, Connectors & Micro Parts
Small shafts, connectors and irregular micro components produced with high-efficiency Swiss-type precision machining.
Quote
On Request
Drawing-based engineering review · response within 24–48 hours
Quantity
Technical Specification
Manufacturing profile for quotation and DFM review.
- Equipment
- Star SP-23 Swiss-type lathe
- Capability
- Maximum diameter 23 mm, length 50 mm, 7-axis machining
- Machining Focus
- Slender shafts, connectors, threaded micro features and complex turned-milled geometries
- Supply
- Small-batch and batch custom production
- Lead Time
- Prototype 7-15 days; batch 15-25 days
Manufacturing Strength
Controlled CNC execution for demanding geometry and surface requirements.
The process route is selected around the part geometry, material behavior, inspection method and delivery volume.
Dimensional Control
7-axis turning supported by inspection checkpoints and tolerance-stack review.
Surface & Edge Quality
Batch stability with burr, edge condition and finish requirements checked before delivery.
Quality System
ISO13485 / ISO9001 driven documentation, inspection and production feedback.
Where It Fits
- Medical connectors
- Precision shafts
- Miniature turned-milled assemblies
Control Points
- Diameter and concentricity checks
- Thread and edge inspection
- Batch SPC where needed
- Deburring review
Execution Workflow
A practical route from drawings to inspected delivery.
Each step is adjusted to part risk, tolerance sensitivity, surface requirements and batch size.
Drawing Review
Evaluate CAD, material, tolerance, surface finish and annual volume before quotation.
Process Route
Define machining sequence, fixture strategy, deformation control and inspection plan.
Prototype Build
Run prototype or pilot production with dimensional and surface checkpoints.
Inspection & Delivery
Provide inspection support, packaging review and batch production feedback.
