Manufacturing Route
CMM reports with drawing-driven process planning and controlled fixture strategy.
Quality & Inspection Services
Dimensional & Contour Inspection Services
Dimensional, contour and surface quality confirmation services supporting precision-machined medical and industrial components.
Quote
On Request
Drawing-based engineering review · response within 24–48 hours
Quantity
Technical Specification
Manufacturing profile for quotation and DFM review.
- Equipment

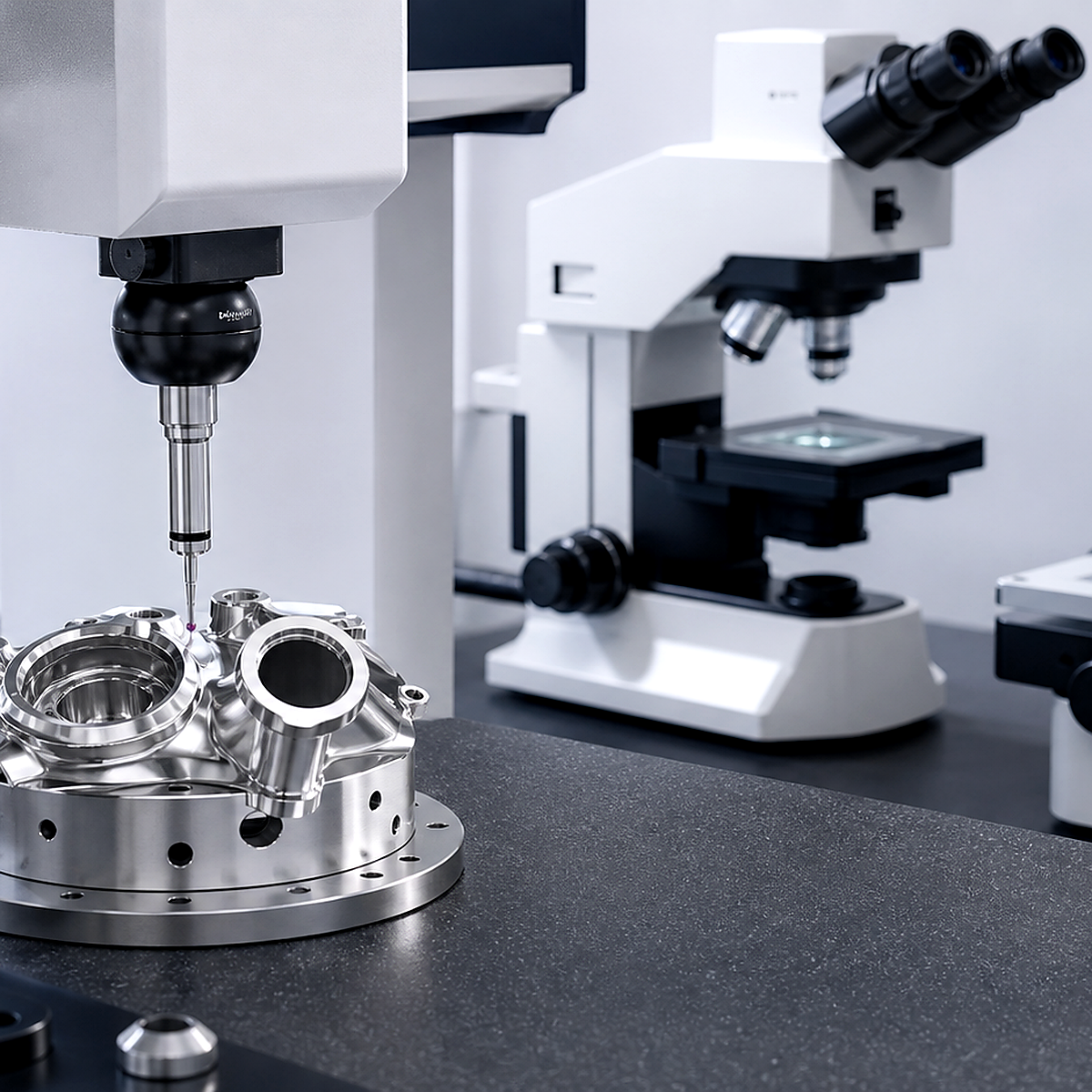

- CMM, dual-coordinate instruments, 3D profiler, optical magnifier and binocular microscope
- Scope
- Dimensions, profile, surface quality, edge condition and drawing-based checks
- Reports
- Inspection reports available according to project requirements
- Supply
- Bundled with manufacturing orders or project-specific inspection support
- Lead Time
- Aligned with order review and inspection workload
Manufacturing Strength
Controlled CNC execution for demanding geometry and surface requirements.
The process route is selected around the part geometry, material behavior, inspection method and delivery volume.
Dimensional Control
3D contour supported by inspection checkpoints and tolerance-stack review.
Surface & Edge Quality
Microscope review with burr, edge condition and finish requirements checked before delivery.
Quality System
ISO13485 / ISO9001 driven documentation, inspection and production feedback.
Where It Fits
- Incoming and outgoing inspection
- Prototype verification
- Process validation and batch quality review
Control Points
- CMM reports
- 3D profile scans
- Microscope records
- Surface and burr review
Execution Workflow
A practical route from drawings to inspected delivery.
Each step is adjusted to part risk, tolerance sensitivity, surface requirements and batch size.
Drawing Review
Evaluate CAD, material, tolerance, surface finish and annual volume before quotation.
Process Route
Define machining sequence, fixture strategy, deformation control and inspection plan.
Prototype Build
Run prototype or pilot production with dimensional and surface checkpoints.
Inspection & Delivery
Provide inspection support, packaging review and batch production feedback.
Product & Capability Images
Send Drawings

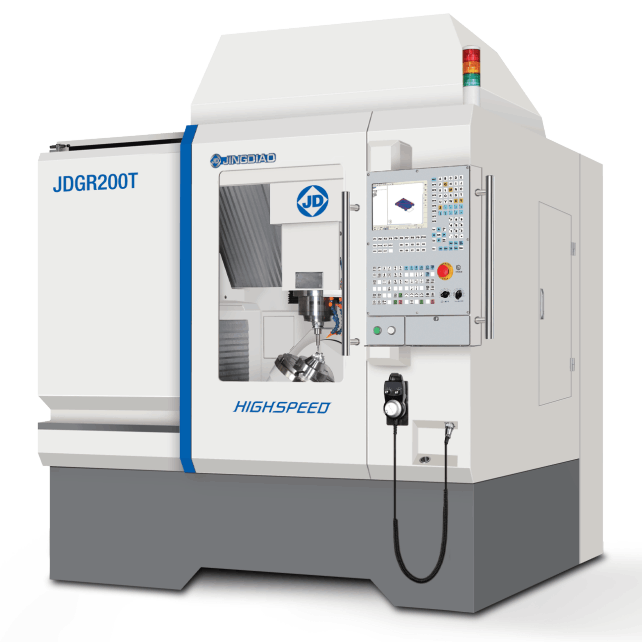

Visual references for geometry, machining and inspection context.
