Manufacturing Route
Drawing based with drawing-driven process planning and controlled fixture strategy.
Other Custom Machining
Other Precision Components

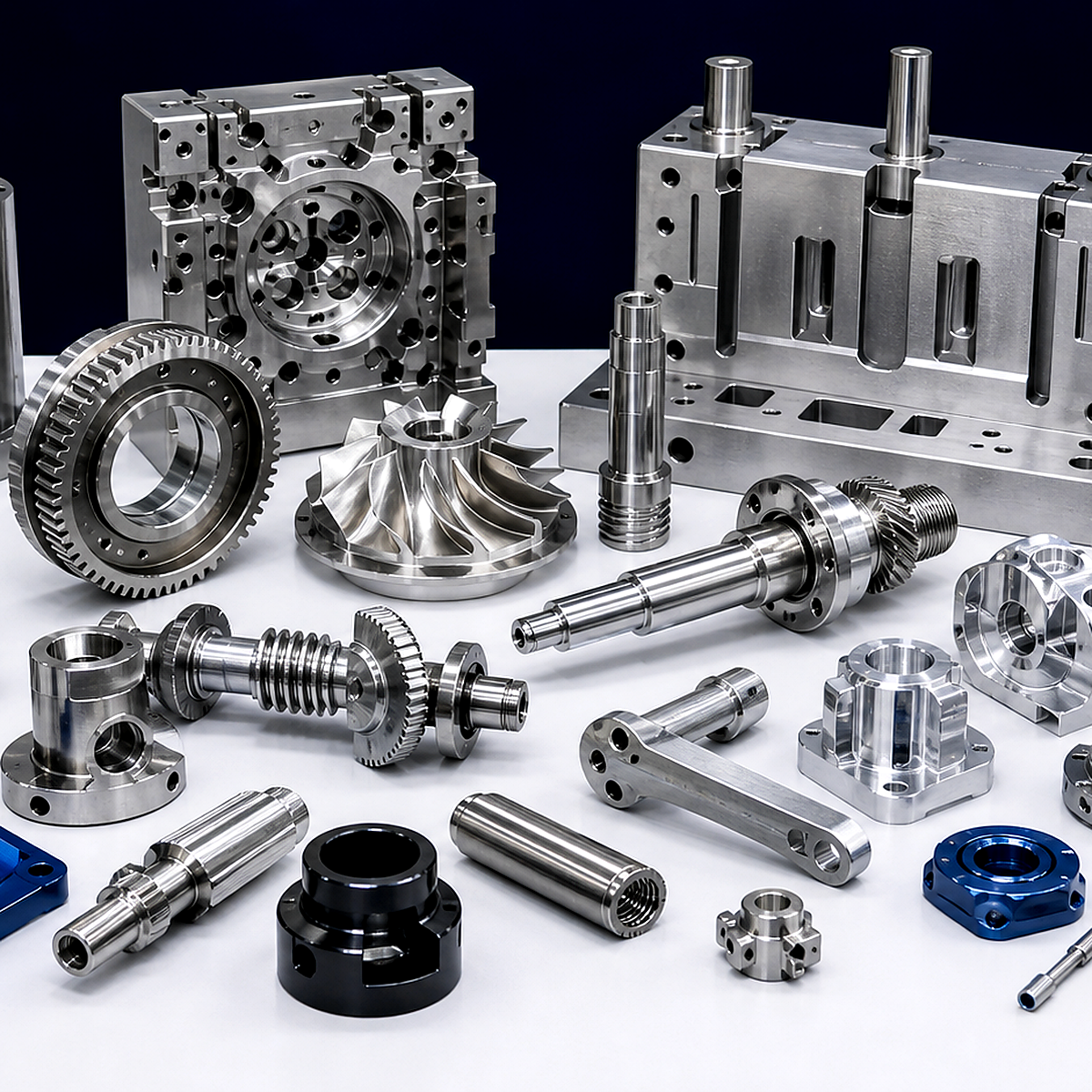

Custom precision mechanical parts for molds, automotive, general machinery and specialized manufacturing programs.
Quote
On Request
Drawing-based engineering review · response within 24–48 hours
Quantity
Technical Specification
Manufacturing profile for quotation and DFM review.
- Material
- Configured by drawing, material, tolerance and surface requirements
- Process
- 3-axis CNC, 5-axis CNC, turning, Swiss-type machining and finishing
- Machining Focus
- Precision features, fit interfaces, surface quality and manufacturability
- Supply
- Prototype, small-batch and batch custom production
- Lead Time
- Prototype 7-15 days; batch 15-30 days
Manufacturing Strength
Controlled CNC execution for demanding geometry and surface requirements.
The process route is selected around the part geometry, material behavior, inspection method and delivery volume.
Dimensional Control
Process selection supported by inspection checkpoints and tolerance-stack review.
Surface & Edge Quality
Batch support with burr, edge condition and finish requirements checked before delivery.
Quality System
ISO13485 / ISO9001 driven documentation, inspection and production feedback.
Where It Fits
- Precision molds
- Mechanical components
- Automotive and general industrial parts
Control Points
- Drawing-based inspection
- CMM where required
- Surface and dimensional review
- DFM feedback before production
Execution Workflow
A practical route from drawings to inspected delivery.
Each step is adjusted to part risk, tolerance sensitivity, surface requirements and batch size.
Drawing Review
Evaluate CAD, material, tolerance, surface finish and annual volume before quotation.
Process Route
Define machining sequence, fixture strategy, deformation control and inspection plan.
Prototype Build
Run prototype or pilot production with dimensional and surface checkpoints.
Inspection & Delivery
Provide inspection support, packaging review and batch production feedback.

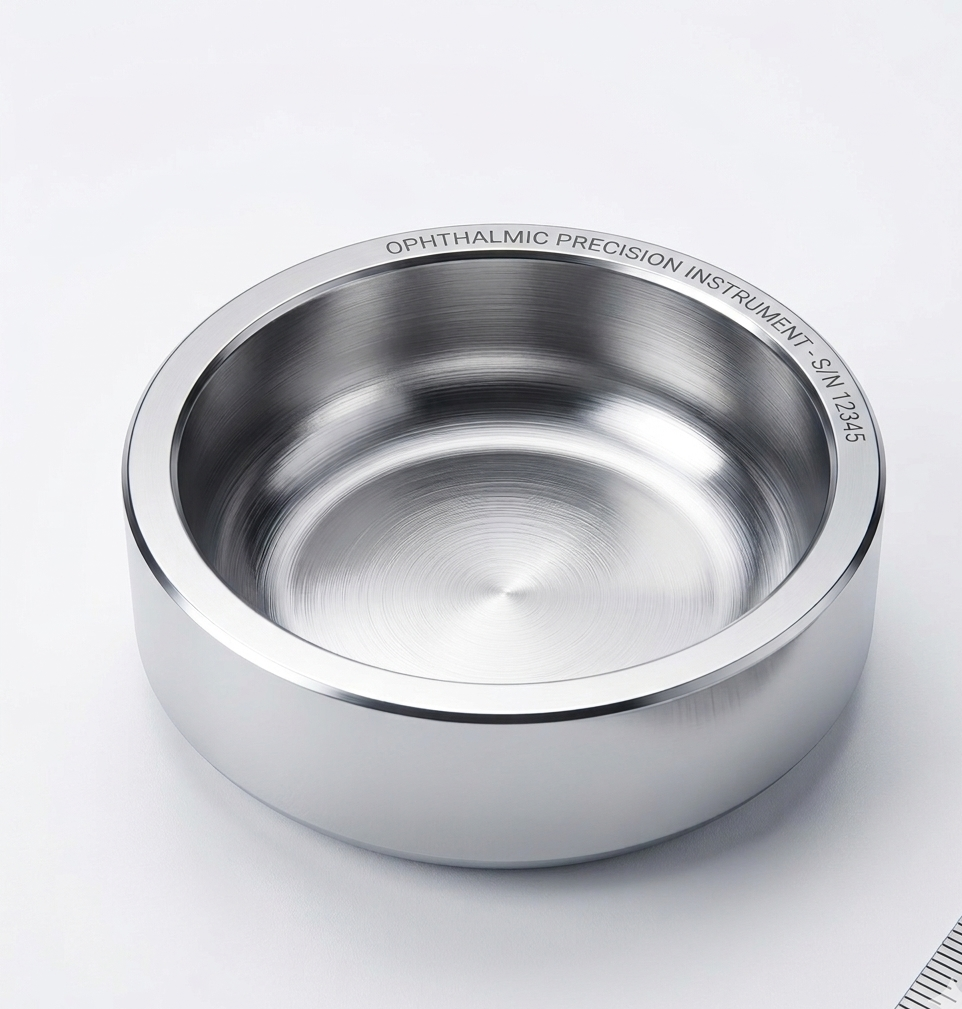

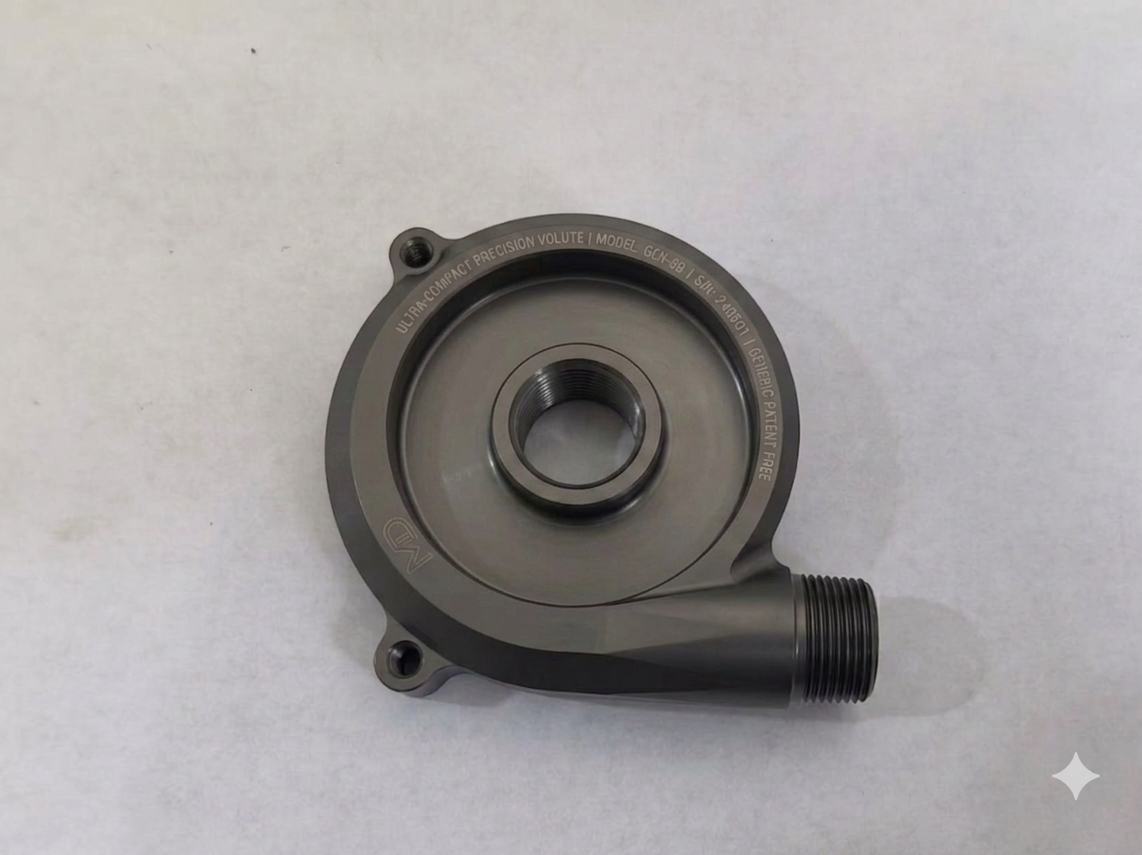

Product & Capability Images
Send Drawings
Visual references for geometry, machining and inspection context.
