ISO 13485:2016 CERTIFIED

Ultra-Precision CNC for PVAD & Complex Medical Components

Specializing in PVAD structural parts, thin-wall micro components, freeform surfaces, mirror polishing and 5-axis precision machining for demanding medical device programs.

TOLERANCE THRESHOLD ±0.002 mm

SURFACE FINISH RA0.01-0.02

QC COMPLIANCE ISO13485 / ISO9001

OPERATIONAL STATUS: OPTIMAL

Manufacturing Capability Spectrum

5-axis machining, Swiss-type micro machining and mirror polishing are coordinated for PVAD, LVAD, thin-wall, irregular and complex curved medical structures.

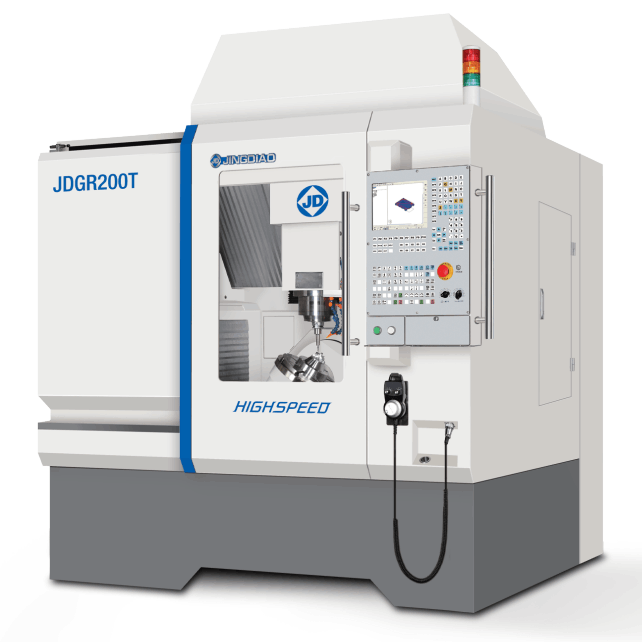

BEIJING JINGDIAO JDGR200T 5-axis machining equipment

settings_input_component

5-Axis Complex Surface Machining

For freeform surfaces, cavities, irregular structures, precision molds, optical parts and difficult medical components requiring stable micron-level machining.

BEIJING JINGDIAO JDGR200T
MICRON-LEVEL REPEATABILITY
AUTOMATED PALLET CHANGERS

Star SP-23 Swiss-type machining equipment

rotate_right

Swiss-Type Micro Machining

Star SP-23 Swiss-type machining supports shafts, connectors, irregular micro parts and thin-wall precision parts in a single clamping workflow.

MAX DIAMETER 23MM
7-AXIS LINKAGE
MICRON-LEVEL REPEATABILITY

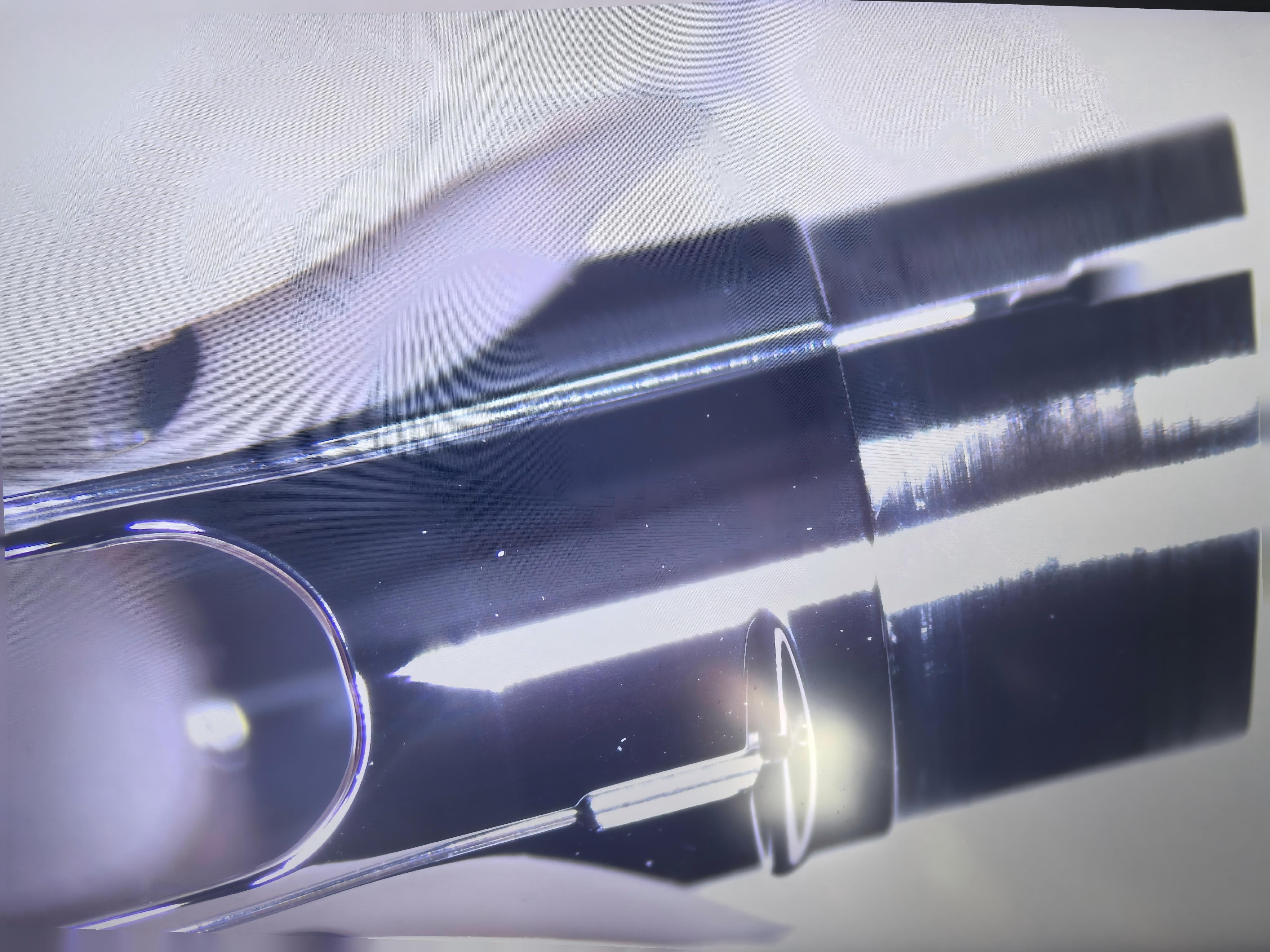

Mirror-level polished precision component

auto_fix_high

Mirror Polishing & Surface Finish

Advanced precision polishing equipment and proprietary process routes help reach Ra 0.01-0.02 mirror-finish for high-value medical and precision parts.

MIRROR-LEVEL SURFACE
RA 0.01-0.02 FINISH
POLISHING + CNC COORDINATION

Technical Capability Matrix

Representative capabilities based on company material. Final tolerances, lead time and capacity are evaluated by drawing and process route.

SERVICE CATEGORY	KEY CAPABILITY	EQUIPMENT / PROCESS	APPLICATION	PRECISION / SPEC
5-Axis Complex Surface Parts	Complex freeform surfaces	JDGR200T / MAZAK VCE570 BL	PVAD, cavities, precision medical structures	Micron-level precision: consistent 5μm, with capability extending to sub-2μm tolerances
Swiss-Type Micro Parts	Bar stock, Ø23mm maximum machining diameter	Star SP-23, 7-axis linkage	PVAD, implant/interventional precision parts	Micron-level precision: consistent 5μm precision
Mirror Polishing	Mirror finish, Ra 0.02-0.01	Advanced polishing equipment	PVAD, implant/interventional precision parts	Mirror-level surface finish for high-value precision parts
Quality Inspection	Drawing-based verification	CMM / 3D profiler / optical systems	Dimensions, contours, surface quality	With order

Process & Material Expertise

BMT Precision evaluates stainless steel, aluminum, titanium and other customer-specified materials according to drawings, tolerances and surface treatment requirements.
