Manufacturing Route
Complex geometry with drawing-driven process planning and controlled fixture strategy.
Medical Device Precision Machining

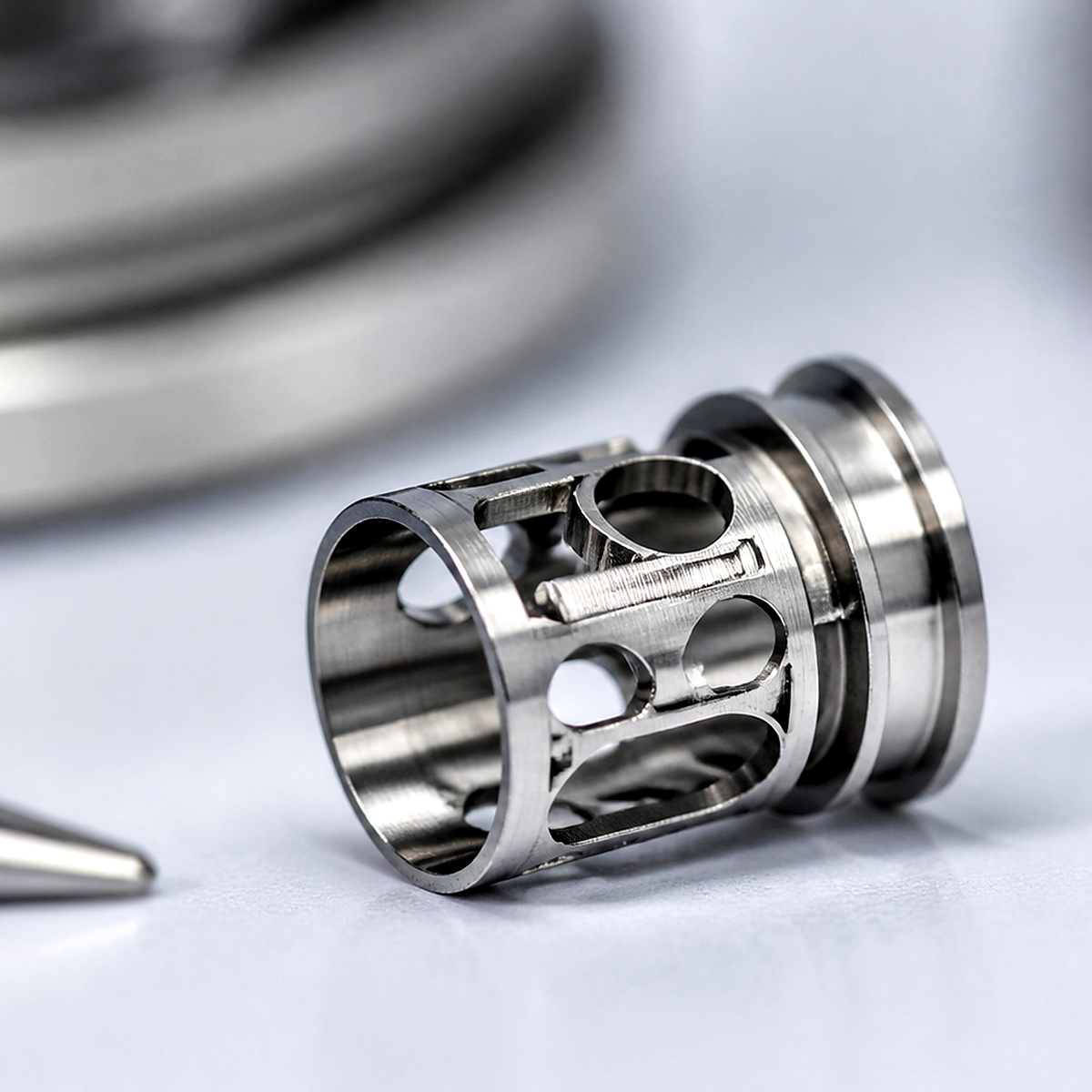

Thin-Wall Micro Parts
Weak-rigidity micro components where thin-wall deformation control, edge quality and repeatable clamping are critical.
Quote
On Request
Drawing-based engineering review · response within 24–48 hours
Quantity
Technical Specification
Manufacturing profile for quotation and DFM review.
- Material
- Medical metals per drawing
- Process
- Swiss-type machining, 5-axis CNC and dedicated fixtures
- Machining Focus
- Thin walls, weak rigidity, micro features and deformation-sensitive toolpaths
- Inspection
- CMM, 3D contour and optical inspection
- Lead Time
- Prototype 10-20 days; batch 20-30 days
Manufacturing Strength
Controlled CNC execution for demanding geometry and surface requirements.
The process route is selected around the part geometry, material behavior, inspection method and delivery volume.
Dimensional Control
Fixture control supported by inspection checkpoints and tolerance-stack review.
Surface & Edge Quality
Contour inspection with burr, edge condition and finish requirements checked before delivery.
Quality System
ISO13485 / ISO9001 driven documentation, inspection and production feedback.
Where It Fits
- Thin-wall medical housings
- Miniature structural rings and sleeves
- Precision micro assemblies
Control Points
- Deformation tracking
- Contour inspection
- Microscope edge inspection
- Fixture repeatability review
Execution Workflow
A practical route from drawings to inspected delivery.
Each step is adjusted to part risk, tolerance sensitivity, surface requirements and batch size.
Drawing Review
Evaluate CAD, material, tolerance, surface finish and annual volume before quotation.
Process Route
Define machining sequence, fixture strategy, deformation control and inspection plan.
Prototype Build
Run prototype or pilot production with dimensional and surface checkpoints.
Inspection & Delivery
Provide inspection support, packaging review and batch production feedback.
Product & Capability Images
Send Drawings
Visual references for geometry, machining and inspection context.
